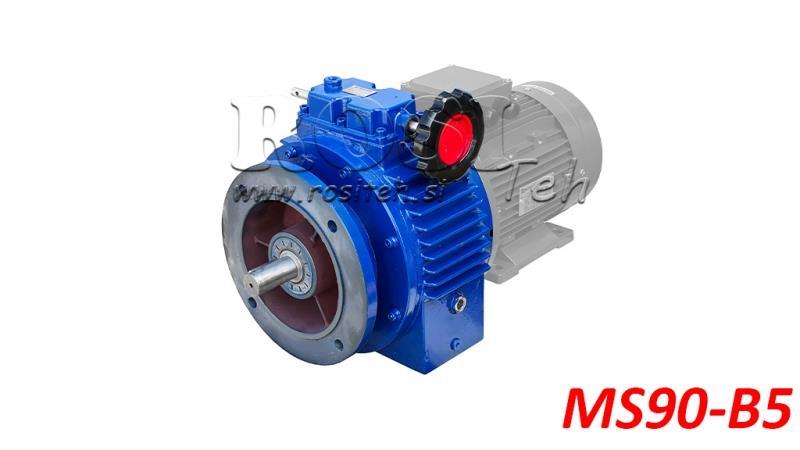

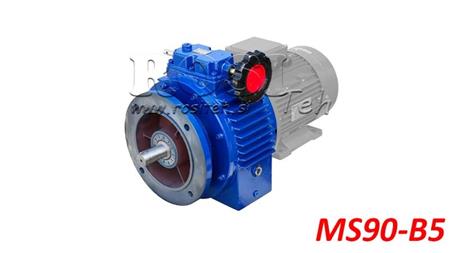

UDL VARIABLE GEARBOX FOR ELECTRIC MOTOR MS90-B5
UDL variable gearboxes for electric motors with flange
UDL variable gearboxes are designed for smooth regulation of the output rotational speed provided by the electric motor. They are used everywhere where the production process requires regulation of rotational speed - in the food, ceramic, chemical, pharmaceutical, plastic, pulp and paper, machine industry, in packaging machines, on lines, etc.
UDL VARIABLE GEARBOX FOR ELECTRIC MOTOR MS90-B5:
- input revolutions of the electric motor: 1400 rpm
- output revolutions of the gearbox: min. 200 rpm, max. 1000 rpm
Main features:
- Simple and highly accurate regulation (0.5 - 1 rpm)
- Wide range of adjustable rotational speed (1.4:7)
- Quality materials for long service life
- Easy adjustment of rotational speed
- Compact design
- Aluminum housing for low weight and corrosion resistance
- Easy installation on the electric motor
| MS63-B5 | MS71-B5 | MS80-B5 | MS90-B5 | MS100-B5 | MS132-B5 |
B | 23 | 30 | 40 | 40/50 | 60 | 70 |
G | 113 | 110 | 139/147 | 147/188 | 208 | 244 |
G3 | 64.5 | 74 | 85.5/95 | 95/115 | 131 | 131 |
H | 70 | 80 | 100/98 | 98/126 | 150 | 200 |
I | 72 | 90 | 98/207 | 207/241 | 270 | - |
M | 115 | 130 | 165 | 165 | 165/265 | 300 |
N | 95 | 110 | 130 | 130 | 130/230 | 250 |
D | 9 | 9 | 11 | 11 | 15 | 19 |
P | 140 | 160 | 200 | 200 | 300 | 350 |
T | 3.5 | 3.5 | 3.5 | 3.5 | 4 | 5 |
VF | 111 | 123 | 140/124 | 124/144 | 188 | - |
VL | 78 | 90 | 107/102 | 102/122 | 150 | 192 |
VR | 110 | 100 | 120/150 | 150 | 160 | 194 |
VS | 85 | 85 | 110 | 110 | 110 | 110/100 |
b | 4 | 5 | 6/8 | 8 | 8 | 10 |
f | - | M6 | M6/M8 | M8 | M8 | M10 |
t | 13 | 16 | 22/27 | 27 | 33 | 38 |
