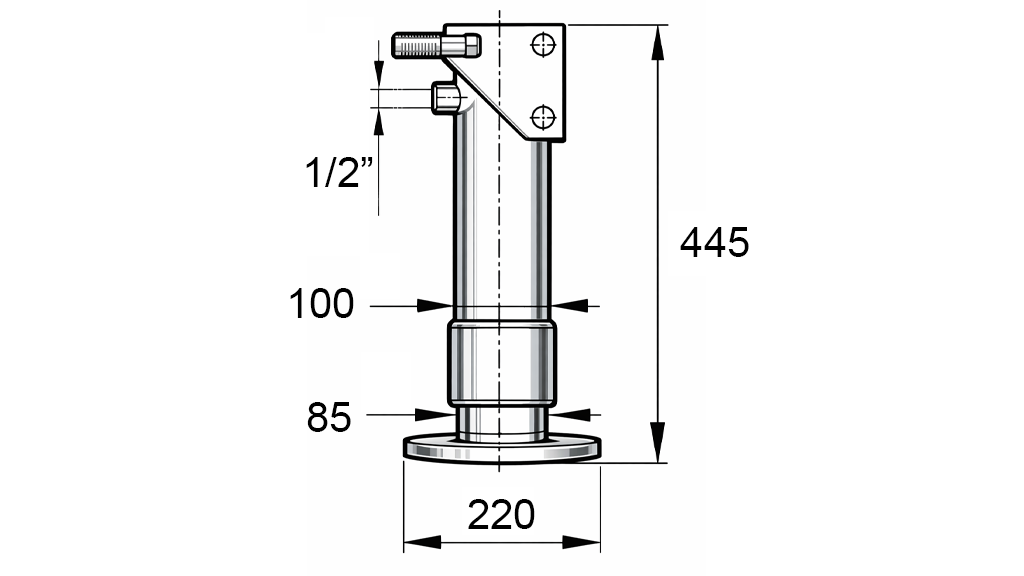

SWIVEL DOUBLE-ACTING HYDRAULIC SUPPORT LEG (Φ100x445 mm) - STROKE 250 mm - 6.000 kg
Article code:
100009
OEM:
9990000014347
Tax rate
22 %
Price without VAT:
323,77 EUR
Price with VAT:
395,00 EUR
Ref:
1
| Technical information | |
| Supplier: | Italy |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Height: | 445 mm |
| Stroke: | 250 mm |
| Oil capacity: | 1,5 L |
| Load capacity: | max. 6000 kg |
| Hydraulic connection: | 1/2" |
| Weight: | 21 kg |
Description
The double-acting hydraulic support leg is designed to provide stable and safe support for trailers, agricultural implements, and other working machinery. It operates on the principle of a double-acting hydraulic cylinder, allowing hydraulic lowering and lifting under load.
Connection to the tractor’s or machine’s hydraulic system ensures easy operation as well as quick and efficient height adjustment. Thanks to the hydraulic operation, use is significantly easier compared to mechanical support legs, especially when handling heavier loads.
The folding mechanism enables an easy transition between the working and transport positions, simplifying operation and increasing safety during driving.
