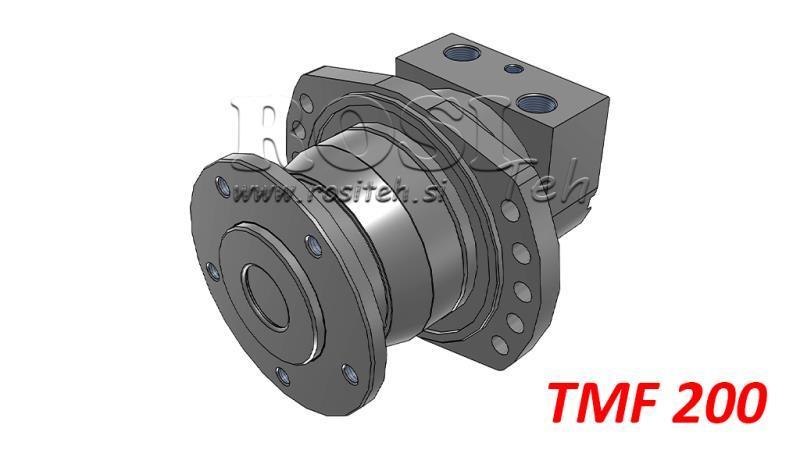

    HIDROMOTOR TMF 200
    HIDROMOTOR TMF 200
    HIDROMOTOR TMF 200
    HIDROMOTOR TMF 200

    HIDROMOTOR TMF 200

    Article code:
    14224
    OEM:
    9990000167890
    Tax rate
    22 %
    Price without VAT:
    713,11 €
    Price with VAT:
    870,00 €
    Ref:
    0
    ADD TO CART



    L [mm]

    L1 [mm]

    L2 [mm]

    L3 [mm]

    TMF 200

    126

    25

    83

    110.3

    TMF 250

    132.3

    31.3

    89.3

    116.6

    TMF 315

    141.5

    40.5

    98.5

    125.8

    TMF 400

    152

    51

    109

    136.3

    TMF 470

    160

    59

    117

    144.3

    TMF 500

    166

    65

    123

    150.3

    TMF 630

    162

    61

    119

    146.3

    TMF 725

    171

    70

    128

    155.3



    Supplier:
    Turkey
    Oil flow:
    constant 125 L/min, max. 150 L/min
    Temperature range:
    from -40°C to 140 °C
    Return or exchange:
    14 days
    torque:
    constant 74 Nm, with interruptions 102 Nm, max. 115 Nm
    cm/revolutions:
    201.4
    connection thread:
    3/4"
    Revolutions:
    constant 625 rpm, with interruptions 750 rpm
    Product weight:
    26.9 kg
    Warranty:
    6 months
    pressure:
    constant 250 bar, with interruptions 350 bar, max. 400 bar
    power:
    constant 41 kW, max. 65 kW
