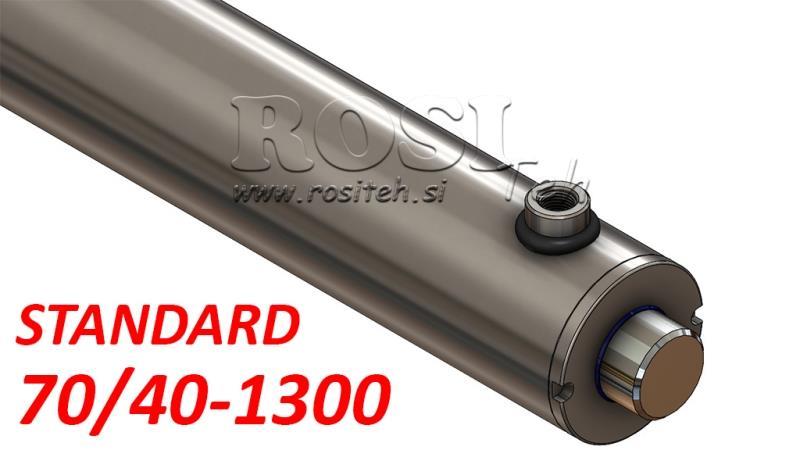

HYDRAULIC CYLINDER STANDARD 70/40-1300
HYDRAULIC CYLINDER STANDARD 70/40-1300
HYDRAULIC CYLINDER STANDARD 70/40-1300
HYDRAULIC CYLINDER STANDARD 70/40-1300
HYDRAULIC CYLINDER STANDARD 70/40-1300
HYDRAULIC CYLINDER STANDARD 70/40-1300

HYDRAULIC CYLINDER STANDARD 70/40-1300

Article code:
12133
OEM:
9990000065134
Tax rate
22 %
Price without VAT:
184,43 €
Price with VAT:
225,00 €
Ref:
27
ADD TO CART

DIMENSIONS

STANDARD

E

D (stroke)

[mm]

70/40-100

271

100

70/40-150

321

150

70/40-200

371

200

70/40-250

421

250

70/40-300

471

300

70/40-350

521

350

70/40-400

571

400

70/40-450

621

450

70/40-500

671

500

70/40-550

721

500

70/40-600

771

600

70/40-700

871

700

70/40-800

971

800

70/40-900

1071

900

70/40-1000

1171

1000

70/40-1100

1271

1100

70/40-1200

1371

1200

70/40-1300

1471

1300

70/40-1400

1571

1400

70/40-1500

1671

1500



HYDRAULIC CYLINDERS



A hydraulic cylinder converts hydraulic energy into linear force, which results in movement. Based on the principle of Pascal's law, the force created by the pressure of a closed liquid (oil) is used to create a movement. When hydraulic fluid is pumped to one side of the cylinder, it pushes the piston and creates a linear movement in the desired direction.

A conventional two-way hydraulic cylinder ("a differential cylinder") has two connections (for the hydraulic hose), allowing linear movement in both directions.


Due to the different ratios of the surface of the pressed oil on one or the other side of the cylinder, it provides different strengths when stretching or shrinking. As a result, the cylinder's (piston's) speed is also different (faster or slower). When "stretching", the oil acts on the entire surface of the piston. As a result, the hydraulic cylinder can exert a higher force, but it moves slower. The opposite, when "shrinking", where the surface is smaller by the diameter of the piston, the cylinder provides a smaller force, but this means it can move faster.



Use of hydraulic cylinders:


Hydraulic cylinders are useful wherever more power is needed. In agriculture, hydraulic cylinders are used for tractors - lifting arms of three-point hydraulics, top links, hydraulic steering wheels, loaders, tractor front hydraulics, etc. Hydraulic cylinders are also widely used on various tractor attachments, such as loaders, tipper trailers, wood splitters, movement mulchers, soil turning plows, snow plows, forestry winches etc.



Moreover, hydraulic cylinders are also very common in forestry, mechanical engineering, construction, shipbuilding, the energy-supply industry, the food industry, and the automotive industry.





There are several types of hydraulic cylinders (different attachments):



Hydraulic cylinders are available in various dimensions and with different mountings to suit a variety of your needs.





Hydraulic cylinders
"STANDARD"





Hydraulic cylinders
"HOLE"





Hydraulic cylinders
"POINT"





Hydraulic cylinders
"FORK"





Hydraulic cylinders
"FLANGE"


supplier:
Italia
cylinder shrinkage force (at 180 bar):
4,66 tons
cylinder shrinkage force (at 250 bar):
6,48 tons
cylinder stretching force (at 180 bar):
6,92 tons
cylinder stretching force (at 250 bar):
9,62 tons
maximum pressure:
250 bar
return or exchange:
14 days
warranty:
2 years
maximum velocity:
0,5 m/s
