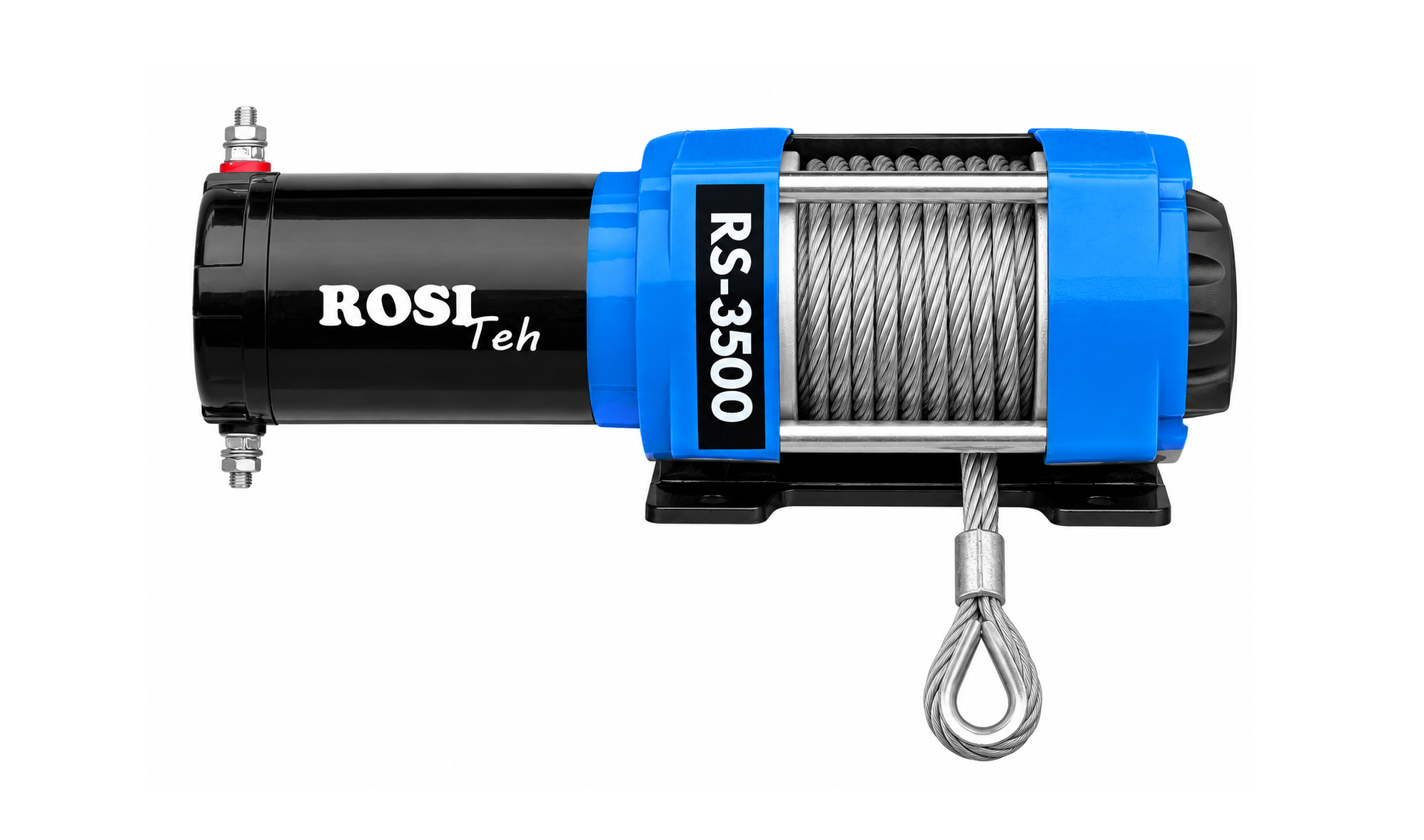

12 V ELECTRIC WINCH RS-3500 - 1585 KG - STEEL WIRE ROPE - ECO

Description:

The RS-3500 Electric Winch (12V) is a reliable and cost-effective solution from our ECO line, designed for pulling medium-duty loads. The RS-3500 is suitable for ATVs and UTVs, smaller trailers, boats, forestry work and other auxiliary applications where controlled and safe pulling is required.

The winch operates on a 12 V DC power supply and provides a rated pulling capacity of up to 1585 kg (3500 lbs) on the first layer of steel wire rope. As the number of steel wire rope layers on the drum increases, the available pulling capacity gradually decreases, which is typical for all drum winches.

Most common applications:

- Vehicle recovery (when an ATV, UTV or smaller vehicle gets stuck in mud, snow or on steep terrain).

- Pulling timber and materials (moving logs, branches or other loads over shorter distances, particularly in difficult-to-access terrain).

- Assistance with boats and trailers (pulling a boat onto a trailer or assisting with load positioning).

- Agricultural and forestry work (moving equipment, machinery or loads where a tractor or larger winch is not available).

- Installation and service work (precise positioning or alignment of components during installation).

Why use an electric winch instead of manual pulling?

- increased safety

- consistent and controlled pulling force

- reduced risk of injury to the operator

- faster and more efficient operation

For heavier loads or greater pulling distances, we recommend using a snatch block, which helps to:

- increase pulling capacity,

- reduce the load on the winch,

- extend the service life of the winch.

Package includes:

- RS-3500 ECO electric winch,

- steel wire rope,

- hook for steel wire rope,

- wired and wireless remote controls,

- receiver and electrical connection cables,

- roller fairlead,

- mounting bolts.

Selection of Cables and Fuses for Winch Installation by Model

Note: Use high-quality copper cables of an appropriate cross-section to supply power to the electric winch. As the distance between the battery and the winch increases, a larger cable cross-section is required due to voltage drop. The values listed represent the recommended minimum cable cross-sections. The actual cable size depends on the maximum current draw of the winch, cable length, operating conditions, temperature and installation method. The distance shown in the table represents the one-way distance between the battery and the winch.

Dimensions

Wiring Diagram

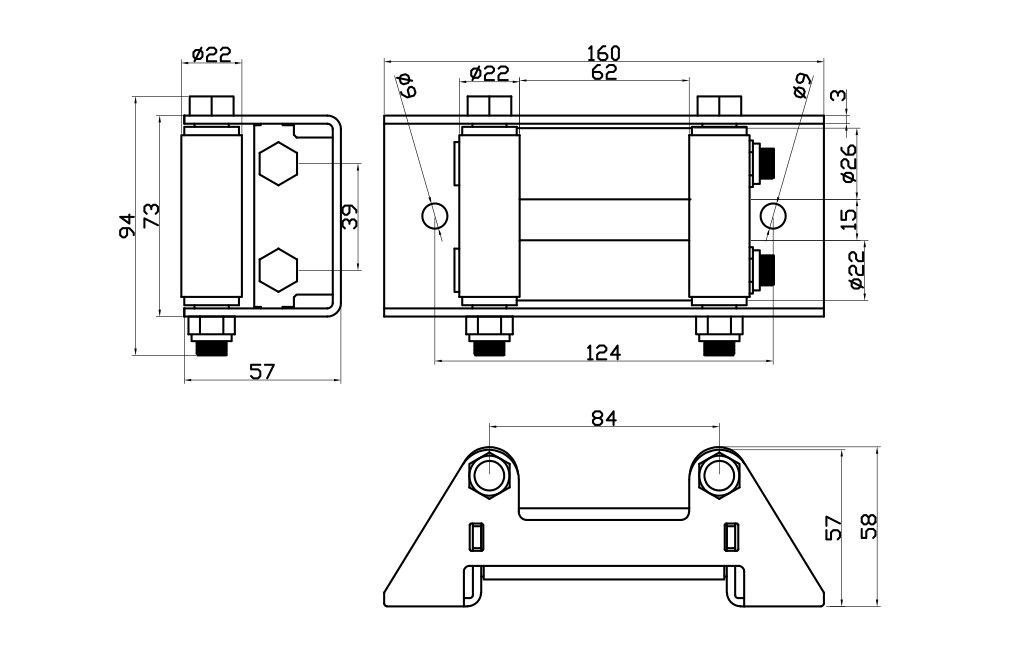

Roller Fairlead Dimensions
