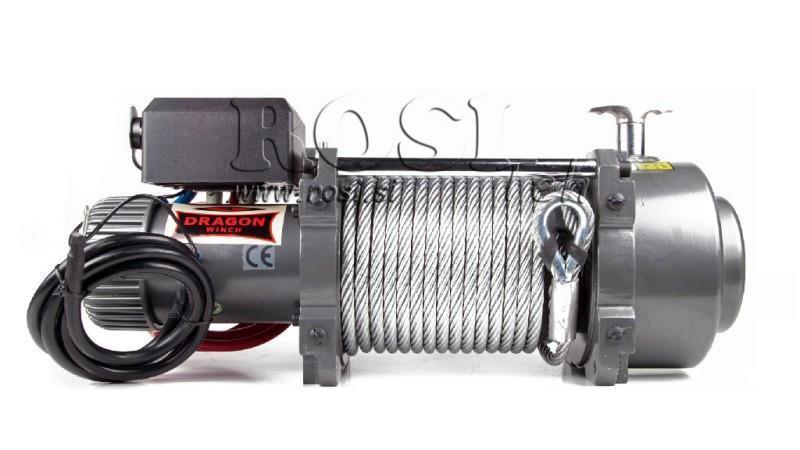

24 V ELECTRIC WINCH DWT 18000 HD - 8165 KG
NOTE: LARGER ITEM (possible change in shipping costs, in this case we will notify you by phone)
Article code:
11902
OEM:
9990000036967
Old price with VAT:
998,00 EUR
Tax rate
22 %
Discont:
20 % ( 199,60 EUR )
Price without VAT:
818,03 EUR
DISCOUNT PRODUCTS
798,40 EUR
Lowest price in 30 days
998,00 EUR
Ref:
8
SPEED OF WIRE ROPE REELING AND ELECTRICITY CONSUMPTION
| Rope Load (kg) | Reeling Speed (m/min) | Electricity Consumption (amp) |
|---|---|---|
| 0 | 6.5 | 30 |
| 4532 | 2.1 | 170 |
| 5443 | 1.6 | 200 |
| 8165 | 1.1 | 290 |
PULLING FORCE DEPENDING ON ROPE LAYER
| Rope Layer | Pulling Force (kg) | Length of Rope on Reel (m) |
|---|---|---|
| 1 | 8165 | 5 |
| 2 | 6597 | 11.5 |
| 3 | 5534 | 19 |
| 4 | 4245 | 28 |
The Truck 18000 HD winch is suitable for small and medium off-road vehicles. Also for towing vehicles and industrial vehicles. It can pull up to 8165 kg (18000lbs). The design of the winch with a powerful motor and transmission, as well as a good construction of the winch itself, allows for use in practically all conditions. The Truck 18000 HD winch provides the highest level of reliability and safety.

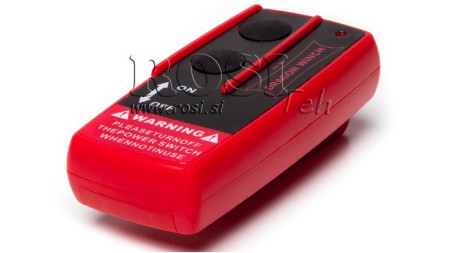

WHERE TO FIND THE WIRELESS WINCH CONTROLLER?
Supplier:
Poland
Return or exchange:
14 days
pulling force:
8165 kg

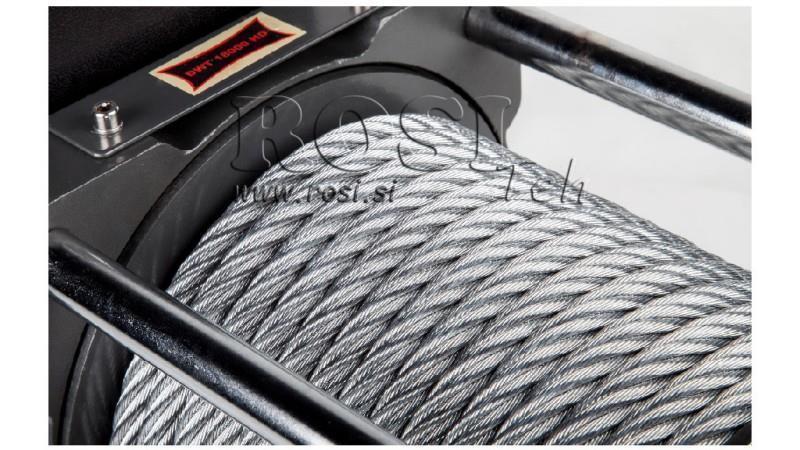

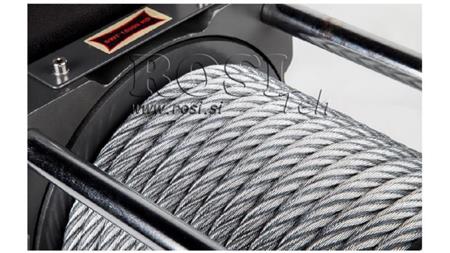

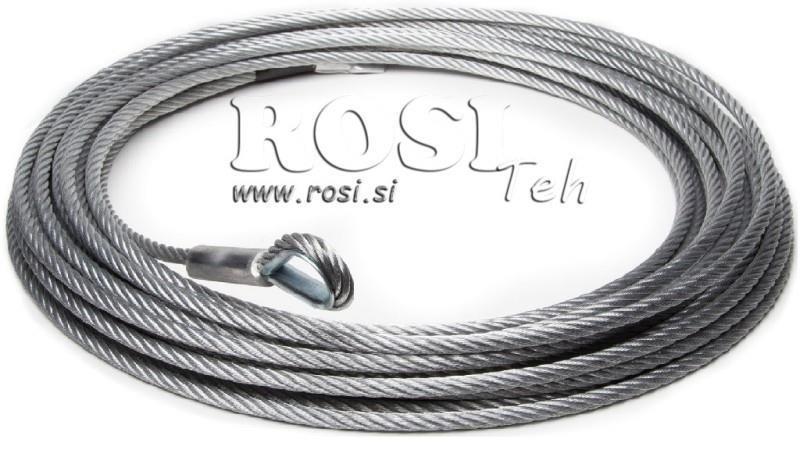

length of wire rope:
28 m, thickness 11 mm
power supply:
electricity (via battery)
control:
wired and wireless controller

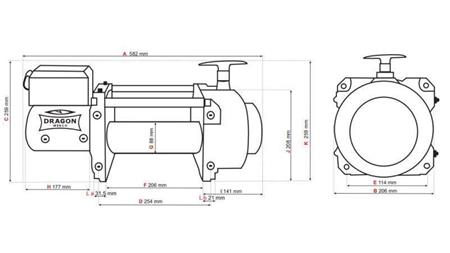

Dimensions (d/w/h):
560mm x 196mm x 267mm
dimensions of mounting hole spacing:
254mm x 114mm
brake:
dynamic
power transmission system:
3-stage planetary

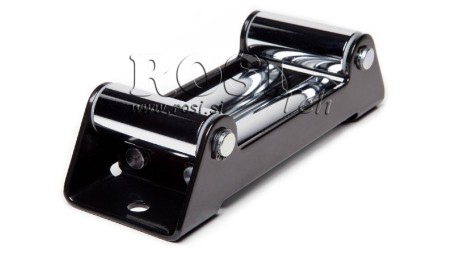

wire rope guide:
4 cylinders
Product weight:
63 kg
Voltage:
24V
power:
7.8 hp
