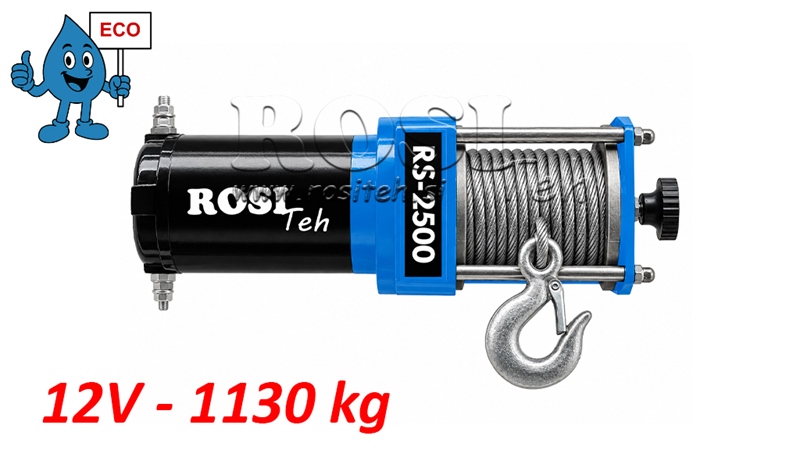

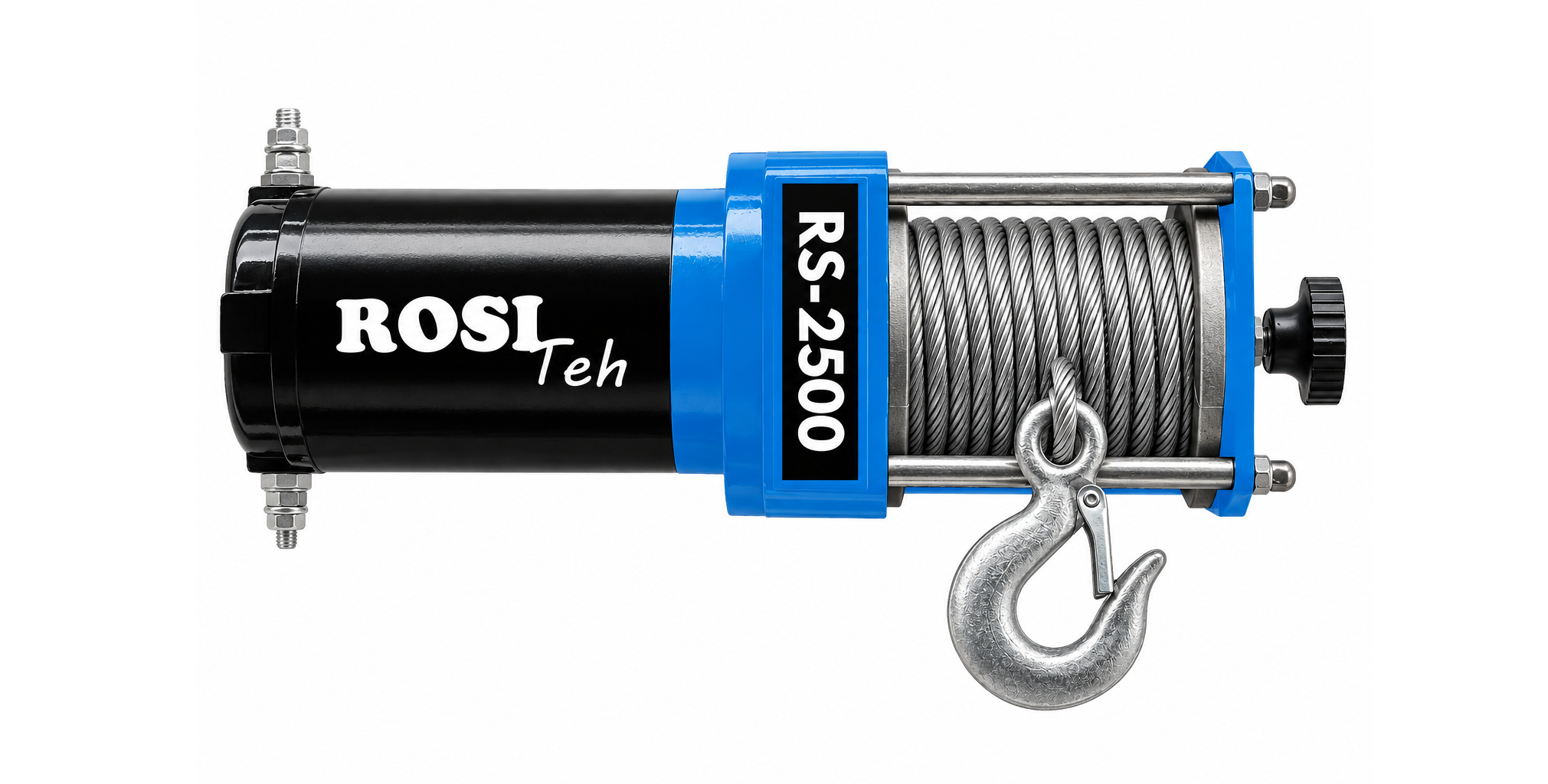

12 V ELECTRIC WINCH RS-2500 - 1133 kg - ECO
| Technical information | |
|
Supplier: |
China |
| Return or exchange: | 14 days |
| Warranty: | 6 months |
| Weight: | 7,5 kg |
| Pulling force: | 1130 kg (2500 lbs) |
| Power supply: | Electric (via battery or accumulator) |
| Voltage: | 12 V (DC) |
| Recommended battery: | Minimum 12 Ah |
| Operation control: | Wired remote control |
| Motor: | 3,0 HP (sealed) |
| Gear transmission: | One-stage planetary |
| Gear ratio: | 153:1 |
| Clutch: | Sliding pin |
| Dimensions: | 338 mm × 123 mm × 118 mm |
| Drum diameter and length: | 38 mm × 72 mm |
| Mounting area: | 80 mm × 130 mm |
| Pulling rope: | Galvanized steel rope (4,8 mm x 9,5 m) |
Description:
The RS-2500 (12V) electric winch is a reliable and affordable solution from our ECO line, designed for pulling light to medium loads. The RS-2500 is suitable for ATVs and UTVs, small trailers, boats, forestry tasks and other auxiliary applications where controlled and safe pulling is required.
The winch operates on a 12 V DC power supply and provides a rated pulling force of up to 1130 kg (2500 lbs) on the first layer of steel wire rope. As the number of rope layers on the drum increases, the available pulling force gradually decreases, which is typical for all drum winches.
Most common applications:
- Vehicle recovery (when an ATV, UTV or smaller vehicle gets stuck in mud, snow or on steep terrain).
- Pulling timber and materials (moving logs, branches or other loads over shorter distances, especially in difficult-to-access terrain).
- Assistance with boats and trailers (pulling a boat onto a trailer or assisting with load positioning).
- Agricultural and forestry tasks (moving equipment, machinery or loads where a tractor or larger winch is not available).
- Installation and service work (precise positioning or alignment of components during installation).
Why use an electric winch instead of manual pulling?
- greater safety
- smooth and controlled pulling force
- reduced risk of injury to the user
- faster and more efficient operation
For heavier loads or longer pulling distances, we recommend using a snatch block, which allows you to:
- increase the pulling force,
- reduce the load on the winch,
- extend the service life of the winch.
Package includes:
- RS-2500 ECO electric winch,
- steel wire rope with hook,
- wired remote control with cables for electrical connection,
- mounting bolts.
Selection of Cables and Fuses for Winch Connection by Model
| Model | Voltage | Fuse | Distance between winch and battery | |||
| (V) | (A) | 0–2 m | 2–4 m | 4–6 m | 6–8 m | |
| RS-2500 |
12 |
150 | 16 mm² | 25 mm² | 35 mm² | 50 mm² |
| RS-3500 | 200 | 25 mm² | 35 mm² | 50 mm² | 70 mm² | |
| RS-8000 | 400 | 50 mm² | 70 mm² | 95 mm² | 120 mm² | |
| RS-12000 | 500 | 70 mm² | 95 mm² | 120 mm² | 150 mm² | |
| RS-12000 |
24 |
250 | 35 mm² | 50 mm² | 70 mm² | 95 mm² |
| RS-20000 | 400 | 50 mm² | 70 mm² | 95 mm² | 120 mm² | |
Note: Use high-quality copper cables with an appropriate cross-sectional area to power the electric winch. As the distance between the battery and the winch increases, a larger cable cross-section is required due to voltage drop. The values shown represent the recommended minimum cable cross-sections. The actual cable size depends on the maximum winch current, cable length, operating conditions, temperature and installation method. The distance shown in the table represents the one-way distance between the battery and the winch.
Dimensions
Wiring Diagram
| PULLING FORCE AND ROPE CAPACITY BY LAYER | ||||||
| Steel wire rope layer | 1 | 2 | 3 | 4 | 5 | |
| Rated pulling force | (kg) | 1130 | 1075 | 889 | 756 | 662 |
| Steel wire rope capacity by layer | (m) | 2.7 | 4.9 | 7.8 | 11.3 | 13 |
| LINE SPEED AND CURRENT DRAW – FIRST LAYER | |||||
| Pulling force | (kg) | 0 | 450 | 900 | 1130 (max) |
| Line speed | (m/min) | 3.2 | 2.29 | 1.1 | 0.7 |
| Current draw | (A) | 11 | 60 | 92 | 150 |
